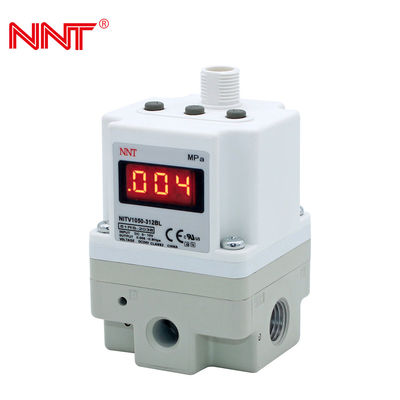

NNT Itv1000 Electric Pneumatic Regulator Long Life Expectancy For 5 Years
Product Details:
| Place of Origin: | China |
| Brand Name: | NNT |
| Certification: | CE |
| Model Number: | itv1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | US＄110 |
| Packaging Details: | carton box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000/pieces per month |
|
Detail Information |
|||
| Minimum Pressure: | +0.1MPa | Set Pressure Range: | 0.005~0.9MPa |
|---|---|---|---|
| Sensitivity: | 0.2%F.S. | Temperature: | 0~50℃ |
| Brand: | NNT | Weight: | 250g |
| High Light: | Itv1000 Electric Pneumatic Regulator,NNT Electric Pneumatic Regulator,Itv1000 electronic air pressure regulator |
||
Product Description
NNT E/P Regulator Laser Cutting Itv1000 Electric Pneumatic Regulator
Product Description
The electric pneumatic regulator adjusts the cross-sectional area of the spool according to the size of the control signal. Adjust the flow rate through stepless control.So as to achieve the process goals and requirements of adjusting the pressure. The electric pneumatic regulator controls the flow rate can be divided into two kinds. One is on-off control and the other is continuous control.
Product Advantage
1. It can realize the stepless adjustment of pressure and speed, avoiding the impact phenomenon when the normally open on-off valve changes direction.
2. It can realize remote control and program control.
3. Compared with intermittent control, the system is simplified and the components are greatly reduced.
4. Compared with hydraulic proportional valve, it is small in size, light in weight, simple in structure and low in cost, but its response speed is much slower than that of hydraulic system, and it is also more sensitive to load changes.
5. Low power, low heat, and low noise.
6. There will be no fire and no pollution to the environment. Less affected by temperature changes.
Product Components
The Diaphragm:
1. Adopting Japanese Fujikura diaphragm,which has extremely natural rolling movement and excellent pressure resistance.
2. No lubrication required.
3. No friction loss,almost no hysteresis loss.
4. leak-proof
5. Long life expectancy for 5 years.
|
Model |
NITV101口 NITV201口 NITV302口 |
NITV103口 NITV203口 NITV303口 |
NITV105口 NITV205口 NITV305口 |
| Minimum Pressure | Set pressure +0.1MPa | Set pressure +0.1MPa | Set pressure +0.1MPa |
| Set pressure range | 0.005~0.1MPa | 0.005~0.5MPa | 0.005~0.9MPa |
| Linearity | ±1%F.S.below | ±1%F.S.below | ±1%F.S.below |
| Repeatability | ±0.5%F.S.below | ±0.5%F.S.below | ±0.5%F.S.below |
| Sensitivity | 0.2%F.S.below | 0.2%F.S.below | 0.2%F.S.below |
| Temperature | 0~50℃ | 0~50℃ | 0~50℃ |
