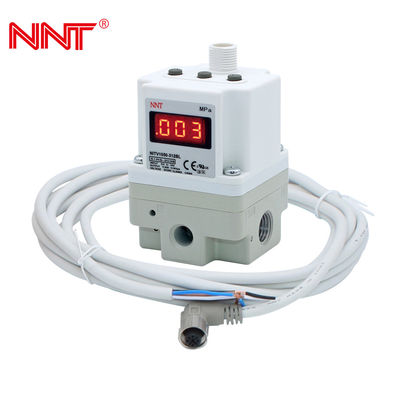

250g Electronic Air Pressure Regulator
Product Details:
| Place of Origin: | China |
| Brand Name: | NNT |
| Certification: | CE |
| Model Number: | itv1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | US＄110 |
| Packaging Details: | carton box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000/pieces per month |
|
Detail Information |
|||
| Temperature: | 0~50℃ | Brand: | NNT |
|---|---|---|---|
| Color: | White | Weight: | 250g |
| Maximum Pressure: | 0.2~1.0MPa | Name: | Electronic Pneumatic Regulator |
| High Light: | 250g Electronic Air Pressure Regulator,1.0MPa Electronic Air Pressure Regulator |
||
Product Description
NNT Electric Pneumatic Regulator Precision Itv Electronic Air Regulator
Product Advantage
1.Compared with hydraulic proportional valve, it is small in size, light in weight, simple in structure and low in cost, but its response speed is much slower than that of hydraulic system, and it is also more sensitive to load changes.
2.Low power, low heat, and low noise.
3.There will be no fire and no pollution to the environment. Less affected by temperature changes.
Product Components
Solenoid Valve:
1.Using Swiss FAS Solenoid Valve
2.Cycling Rate:30Hz
3.Life Expectancy,Cycles:100'000'000 times
4.Temperature Range:-25℃~+70℃
Pressure Sensor:
1.Recation Speed:0.36s
2.Sensitivity:0.2%F.S. or less
3.Using Differential Signal Output:strong stability,consistent pressure at different temperatures
4.The circut board has passed the EMC test and has strong anti-interference,more pressure sensitive.
|
Model |
NITV101口 NITV201口 NITV302口 |
NITV103口 NITV203口 NITV303口 |
NITV105口 NITV205口 NITV305口 |
| Minimum Pressure | Set pressure +0.1MPa | Set pressure +0.1MPa | Set pressure +0.1MPa |
| Set pressure range | 0.005~0.1MPa | 0.005~0.5MPa | 0.005~0.9MPa |
| Repeatability | ±0.5%F.S.below | ±0.5%F.S.below | ±0.5%F.S.below |
| Sensitivity | 0.2%F.S.below | 0.2%F.S.below | 0.2%F.S.below |
Company Profile
NNT,Guangdong Nuonengtai Automation Technology Co., Ltd.is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.
Contact Us
Whatsapp:+86 17702626719
Wechat:17702626719
Email:Jacob@nntqd.com
FAQ
Q:How can i get the sample to chcek your quality?
A:After price confirmation,you can require for samples to check our product detials.
Q:What can i get the price?
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please tell us in youre email so that we will regard your price priority.
Q:What is your term of delivery?
A:We accept EXW ,FOB Shenzhen or FOB Dongguan.You can choose the one which is the most convenient or cost effective for you.
Q:What about the lead time for the mass production?
A:Honestly,it depends on the order quantity and the season you place the order.
