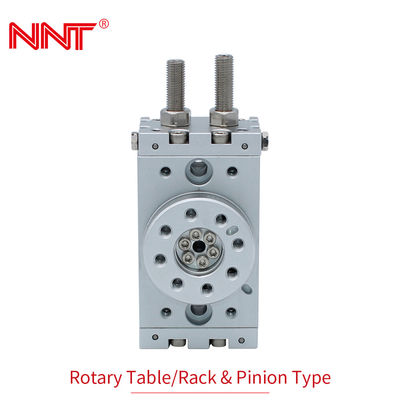

MSQB Rack And Pinion Rotary Air Cylinder 90 / 180 Degrees 10-200mm Bore
Product Details:
| Place of Origin: | China |
| Brand Name: | NNT |
| Certification: | CE |
| Model Number: | MSQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | US＄32-＄85 |
| Packaging Details: | carton box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000/pieces per month |
|
Detail Information |
|||
| Fluid: | Air (non-lube) | Action: | Double Acting |
|---|---|---|---|
| Minimum Operating Pressure: | 0.1MPa | Type: | Rotary Table/Rack & Pinion |
| Cylinder Bore Size: | Φ15~Φ40 | Maximum Rotation: | 190° |
| High Light: | MSQB Rotary Air Cylinder,180 Degrees Rotary Air Cylinder,200mm Bore Rotary Air Cylinder |
||
Product Description
MSQB 90/180 Degrees 10-200mm Bore Rack And Pinion Pneumatic Rotary Cylinder
Product Description
1. By using high precision bearing, the movement in the direction of table's radial thrust is 2.reduced to ±0.01mm.
3. Easy mounting of workpiece.
4. Rolling element bearing, 3 or 4 times axial load compared with CRQ series.
1. Rotating platform type,workpiece easy installation
2. Roller bearing design,swing smoothly,accurately
3. Hollow shaft can be used for the introduction of wire of climate
4. Standard device with a transfer point,adjust the angle range
5. Built-in magnetic ring,magnetic switch can be installed
| Bore Size | 10 | 20 | 30 | 50 | 70 | 100 | 200 |
| With adjustment bolt | 0.007J | 0.025J | 0.048J | 0.081J | 0.24J | 0.32J | 0.56J |
| With internal shock absorber | 0.039J | 0.116J | 0.116J | 0.294J | 1.1J | 1.6J | 2.9J |
| Cylinder bore size | Φ15 | Φ18 | Φ21 | Φ25 | Φ28 | Φ32 | Φ40 |
Company Profile
NNT,Guangdong Nuonengtai Automation Technology Co., Ltd.is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.
Contact Us
Whatsapp:+86 17702626719
Wechat:17702626719
Email:Jacob@nntqd.com
Packing&Shipping
Package:Standard export carton packing
Delivery time:3-20 days after confirming order,detail delivery data should be decided according to production season and order quantity.
FAQ
Q:How can i get the sample to chcek your quality?
A:After price confirmation,you can require for samples to check our product detials.
Q:What can i get the price?
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please tell us in youre email so that we will regard your price priority.
.
