Rotary Table Rack Pinion Type Air Cylinder MSQ 0~190° Hardness Gripper
Product Details:
| Place of Origin: | China |
| Brand Name: | NNT |
| Certification: | CE |
| Model Number: | MSQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | US＄32-＄85 |
| Packaging Details: | carton box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000/pieces per month |
|
Detail Information |
|||
| Minimum Operating Pressure: | 0.1MPa | Ambient And Fluid Temperature: | 0-60℃ |
|---|---|---|---|
| Design: | Rolling Bearing | Swing Effect: | Smooth，accurate |
| High Light: | Pinion Type Air Cylinder,Rotary Pinion Type Air Cylinder,Pinion Type Rotary Air Cylinder |
||
Product Description
Rotary Table/Rack & Pinion Type Air Cylinder MSQ 0~190° Hardness Gripper
Main Specifications
- Fluid: air (non-lube)
- Maximum operating pressure: With adjust bolt leveling mount / 1 MPa, models with internal absorber / 0.6 MPa (* 1)
- Minimum operating pressure: Basic type/0.1 MPa (all sizes), high-precision type / 0.2 MPa (size 10), 0.1 MPa (size 20, 30, 50), none (Size 70, 100, 200)

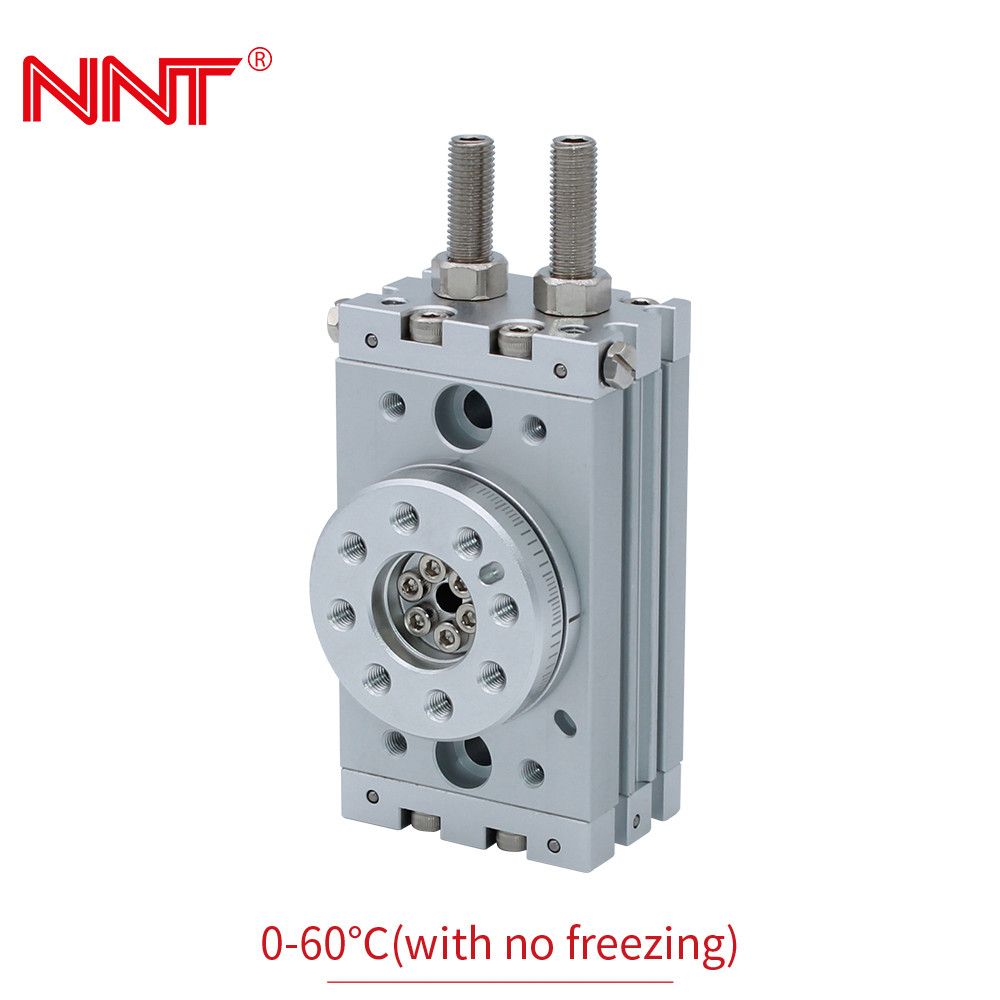

- Ambient and fluid temperature: 0 to 60°C (no freezing)
- Angle adjustment range: 0 to 190° (* 2)
- Maximum rotation angle: 190°
- Port size: End Face Port / M5 × 0.8 (Size 10, 20), Rc1/8, G1/8, NPT1/8 (Size 30, 50, 70, 100, 200)
- Port size: Side port / M5 × 0.8 (All sizes)
| Bore Size | 10 | 20 | 30 | 50 | 70 | 100 | 200 |
| With adjustment bolt | 0.007J | 0.025J | 0.048J | 0.081J | 0.24J | 0.32J | 0.56J |
| With internal shock absorber | 0.039J | 0.116J | 0.116J | 0.294J | 1.1J | 1.6J | 2.9J |
| Cylinder bore size | Φ15 | Φ18 | Φ21 | Φ25 | Φ28 | Φ32 | Φ40 |
