Number Of Fingers: 4 Fingers Number Of Auto Switches: 1 Or 2 Pcs
Action: Double Acting Fingers: Four Fingers
Brand Name: NNT Product Name: Cylindrical Gripper
High Light:

Double Acting Compact Air Cylinder

,

NNT Compact Air Cylinder

Product Description

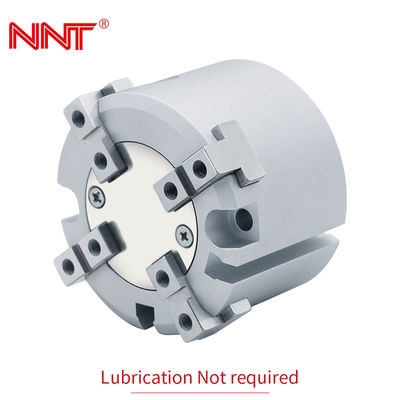

NNT MHS4 Series Hardness 4 Jaw Pneumatic Gripper Pneumatic Robot Gripper



Pneumatic finger, also known as finger cylinder, is a technical professional tooling fixture in the pneumatic manufacturing industry. It can be divided into four categories according to its function and characteristics.
1. Parallel gripper
The fingers of the parallel gripper are based on the posture of the 2 pistons. Each piston is connected with a pneumatic finger by a roller and a double crank to produce a unique driver module. In that way, the pneumatic fingers always move radially to the center, and each finger cannot be moved independently. If the finger is moved in the opposite direction, the previously stressed piston is in the exhaust pipe condition, and the other piston is in the force condition. The parallel surface gripper is driven by a single piston, the pivot pushes the crank, and each of the two claws has a corresponding crank groove. In order to reduce frictional resistance, the claw piece is connected with itself as a steel ball slide structure.
2. Shaking gripper (Y-shaped gripper) There is a ring groove on the piston rod of the shaking gripper. Because the finger trunnion is connected with the ring groove, the fingers can be moved separately and automatically centered, and grasping is guaranteed The torque is finally stable.
3. Rotating jaws The posture of rotating jaws is working in accordance with the basic principle of rack and pinion toothing. The piston is fixed together with a shaft that can move left and right. There are three ring grooves at the end of the shaft, and this groove is engaged with the teeth of the two driving wheels. Therefore, the pneumatic finger can be moved separately and centered automatically. The basic principle of the rack ensures that the grasping range is stable from beginning to end.
Four, three-point gripper The piston of the three-point gripper has an annular groove, and each crank is connected with a pneumatic finger. The piston fitness exercise can drive three crank postures, so the three fingers can be manipulated to open and close together.



Double Acting Compact Air Cylinder 0





Double Acting Compact Air Cylinder 1



Model NMHS4-16D NMHS4-20D NMHS4-25D NMHS4-32D NMHS4-40D NMHS4-50D NMHS4-63D
Bore Size(mm) 16 20 25 32 40 50 63
External grip 10 19 31 55 88 140 251
Internal grip 12 21 35 61 97 153 268
Opening/Closing stroke(mm) 4 4 6 8 8 12 16
Weight (g) 66 110 154 300 390 590 1095
