Product Details:

Place of Origin: China
Brand Name: NNT
Certification: CE
Model Number: NMHZ2

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: US$17-$60
Packaging Details: carton box
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces per month
Get Best Price Contact Now

Detail Information

Action: Double Acting Auto Switch: Solid State Auto Switch
Pipe Size: M3x0.5/M5x0.8 Core Components: Bearing
Structure: General Cylinder Body Material: Aluminum
High Light:

M5x0.8 Air Gripper Cylinder


M3x0.5 Air Gripper Cylinder

Product Description

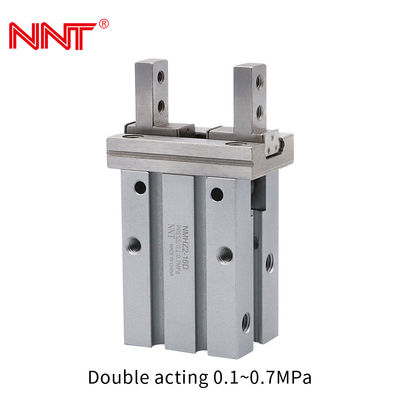

NNT Air Gripper Cylinder Aluminum Alloy Material Parallel Pneumatic Gripper


High precision:

1.Body thickness tolerance:±0.05mm
2.No guide protrusion in direction of body thickness
3.Improved remounting accuracy
4.Top mounting centering location Positioning dowel pin holes provided
Mounting is more secure with a depth 0.5 to 2 mm greater than current types.


M5x0.8 Air Gripper Cylinder 0



M5x0.8 Air Gripper Cylinder 1



Bore Size 6mm 10mm 16mm 20mm 25mm 32mm 40mm
Double Acting 0.15~0.7MPa 0.2~0.7MPa 0.1~0.7MPa 0.1~0.7MPa 0.1~0.7MPa 0.1~0.7MPa 0.1~0.7MPa
Single Acting 0.3~0.7MPa 0.35~0.7MPa 0.25~0.7MPa 0.25~0.7MPa 0.25~0.7MPa 0.25~0.7MPa 0.1~0.7MPa


Company Profile

NNT,Guangdong Nuonengtai Automation Technology Co., Ltd.is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.
